Remote Control Switch Receiver 300-868MHz 433MHz Receiver .
-
Free Shipping: On all orders over 99 AED
Remote Control Switch Receiver 300-868MHz 433MHz Receiver .
SPECIFICATIONS
Brand Name: KUANGZIPENG
Certification: CE
Choice: yes
Compatible 1: DOORHAN HORMANN BERNER MARANTEC remote control receiver
Compatible 2: LIFTMASTER DITEC PUJOL MARANTEC remote control receiver
Encoding method: Rolling code
For: fixed code rolling code Learning code
Frequency1: 300-900MHZ
Hign-concerned Chemical: None
Material: Metal and PVC

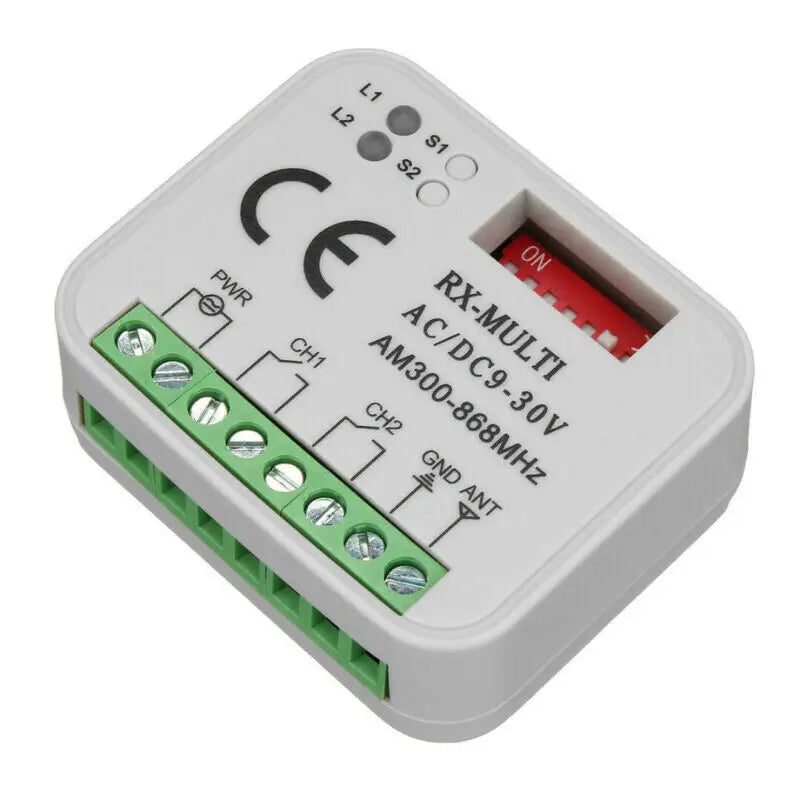

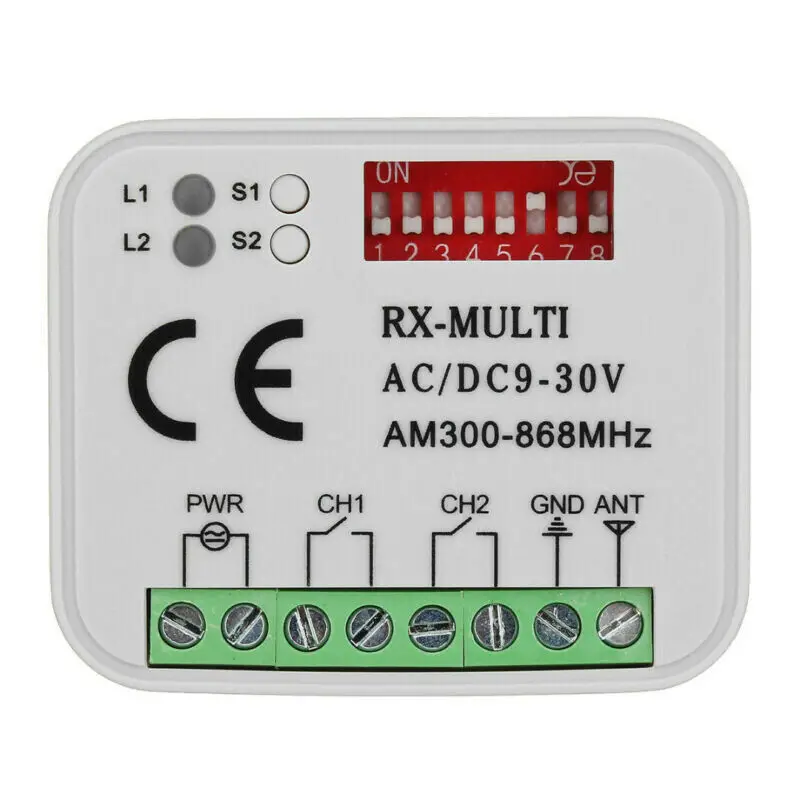

Model Number: RX-MULIT Receiver
Origin: Mainland China
Use for: garage/gate door/sliding gates/barrier/swing gate
Use for1: Garage door remote control receiver
Use for2: Gate Opener receiver for 433 868 MHz transmitter
Voltage: AC/DC 9-30V
Working mode: Momentary
frequency contains: 300MHz 310MHz 315MHz 318MHz 433.4MHz 390MHz 433MHz 433.92MHz 868MHz 868.3MHz 868.8MHz
semi_Choice: yes
Specifications:
1)Name: 300-900mhz Universal receiver
2)Operating Voltage: 9V-30V
3)Channel: 2.
4)Frequency: 300MHz - 900MHz.
5) Distance: 30-50 meters.

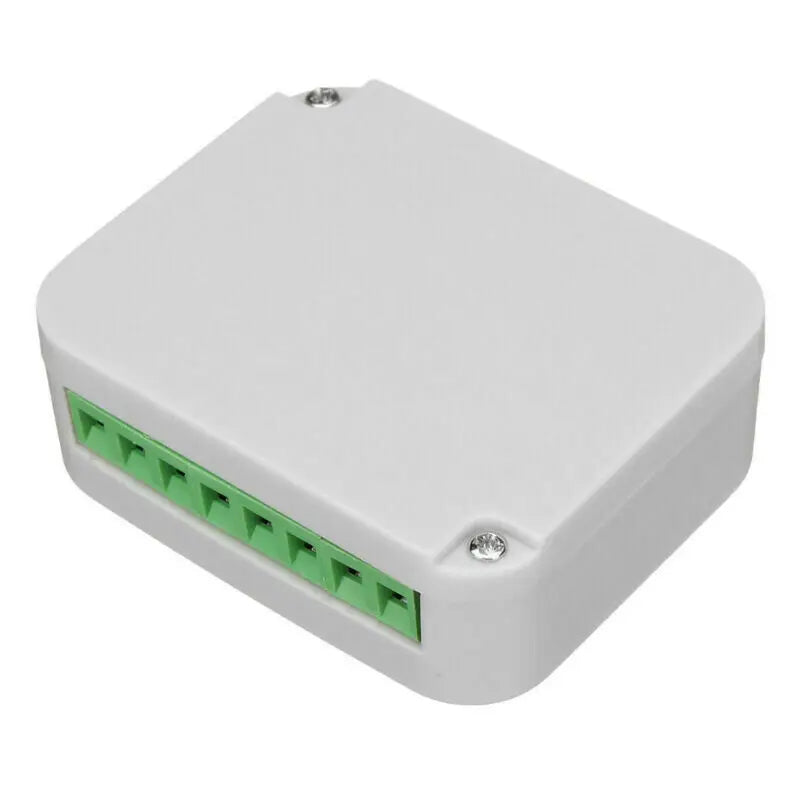

6) Very mini size: 5.5cm*4.5cm*1.0cm.

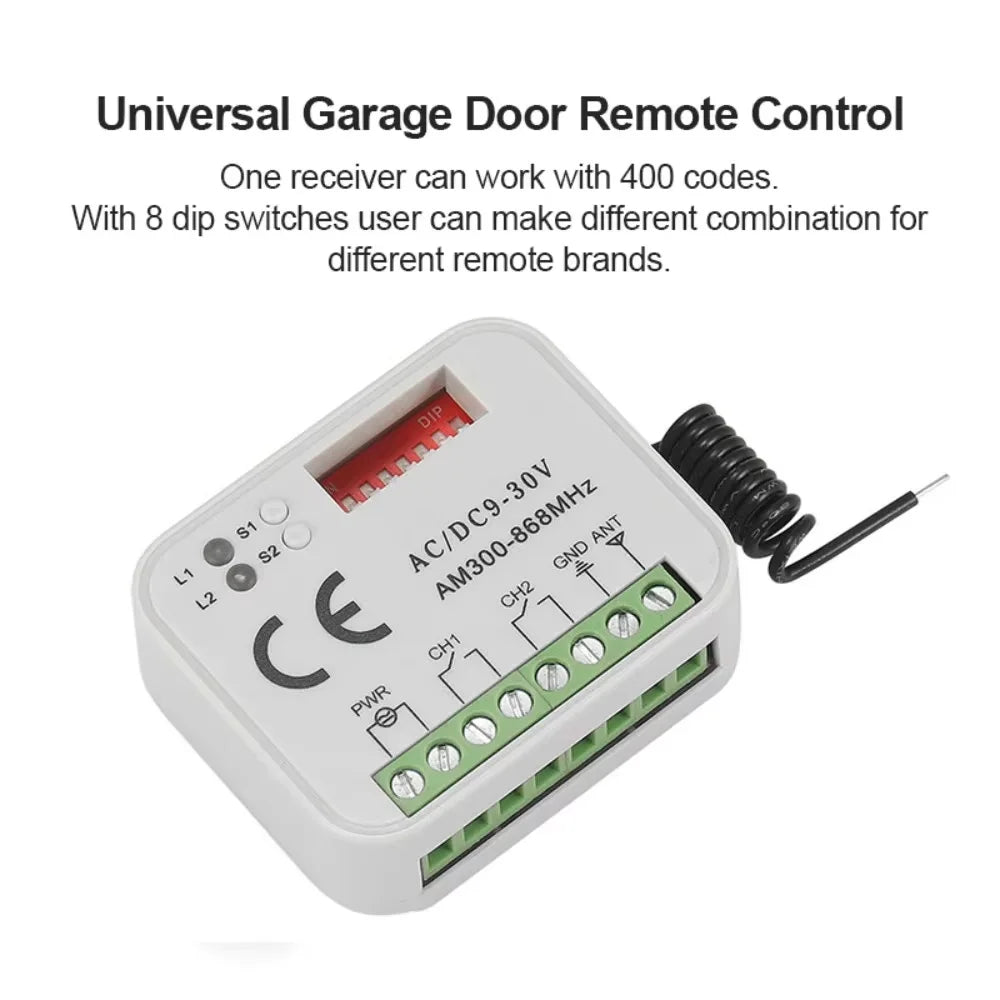

7) One receiver can work with 400 codes.
8) It don’t interference other remotes and receivers.

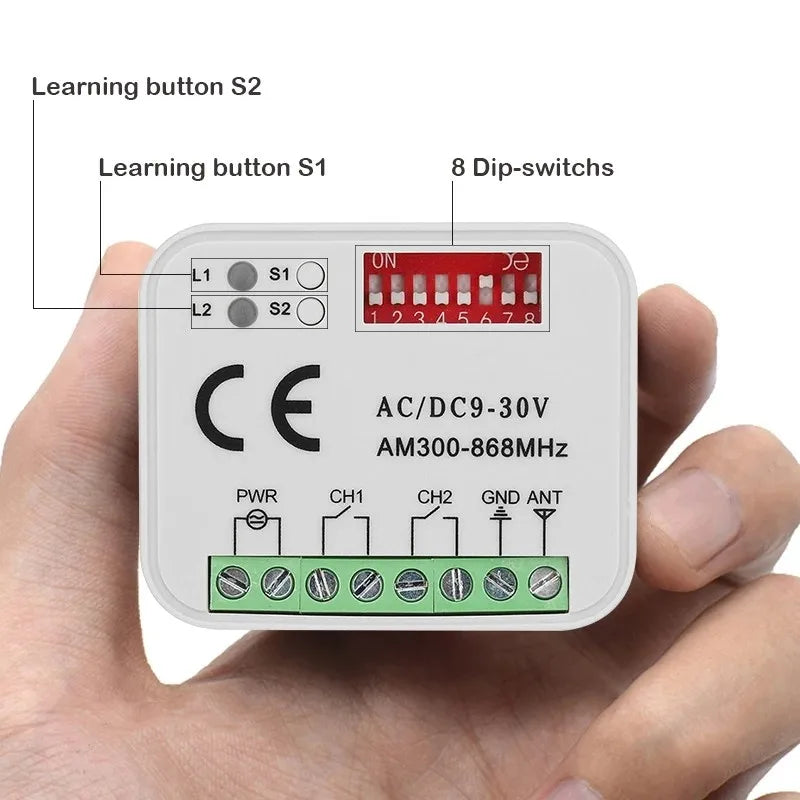

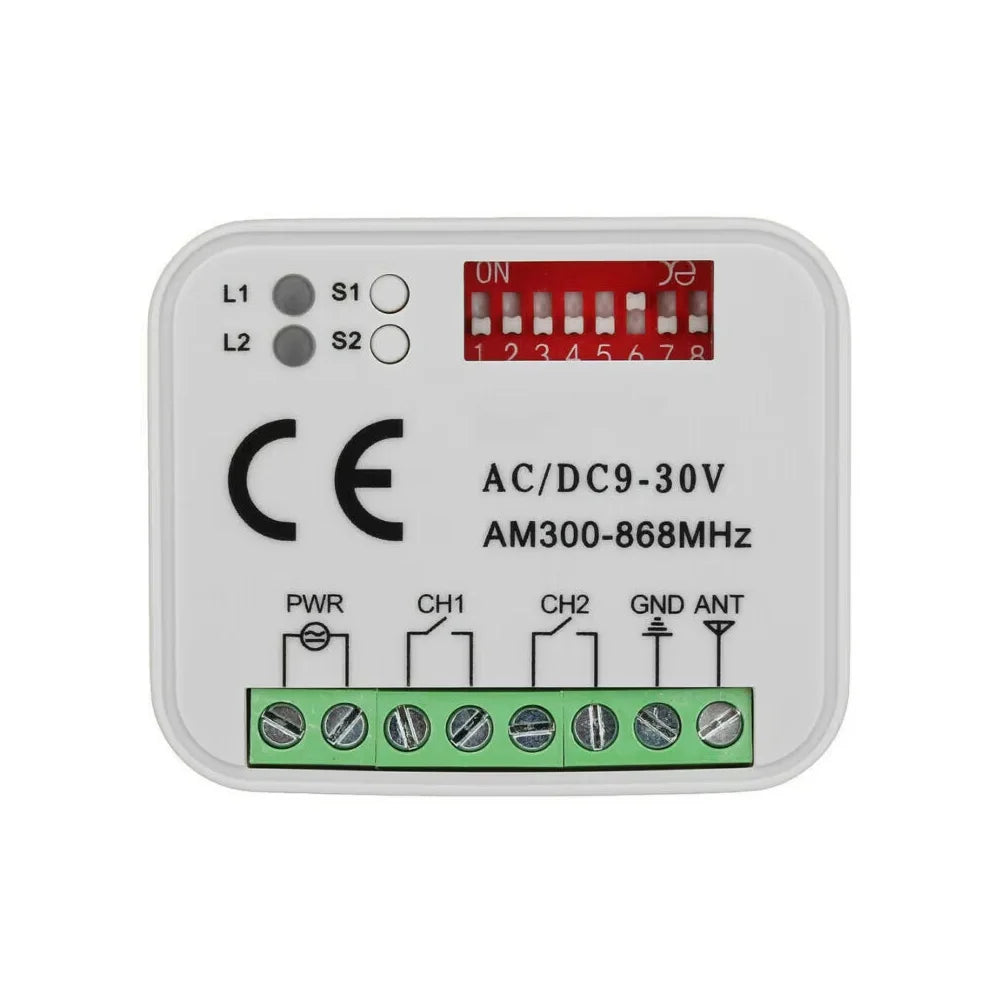

9) Brand selector: With 8 dip switches user can make different combination for different remote brands.
10)Code: Rolling and Fixed code & Learning code.
11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
12) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.
Working frequency: 300-900MHz(Rolling code & Fixed code)
300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz
Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),

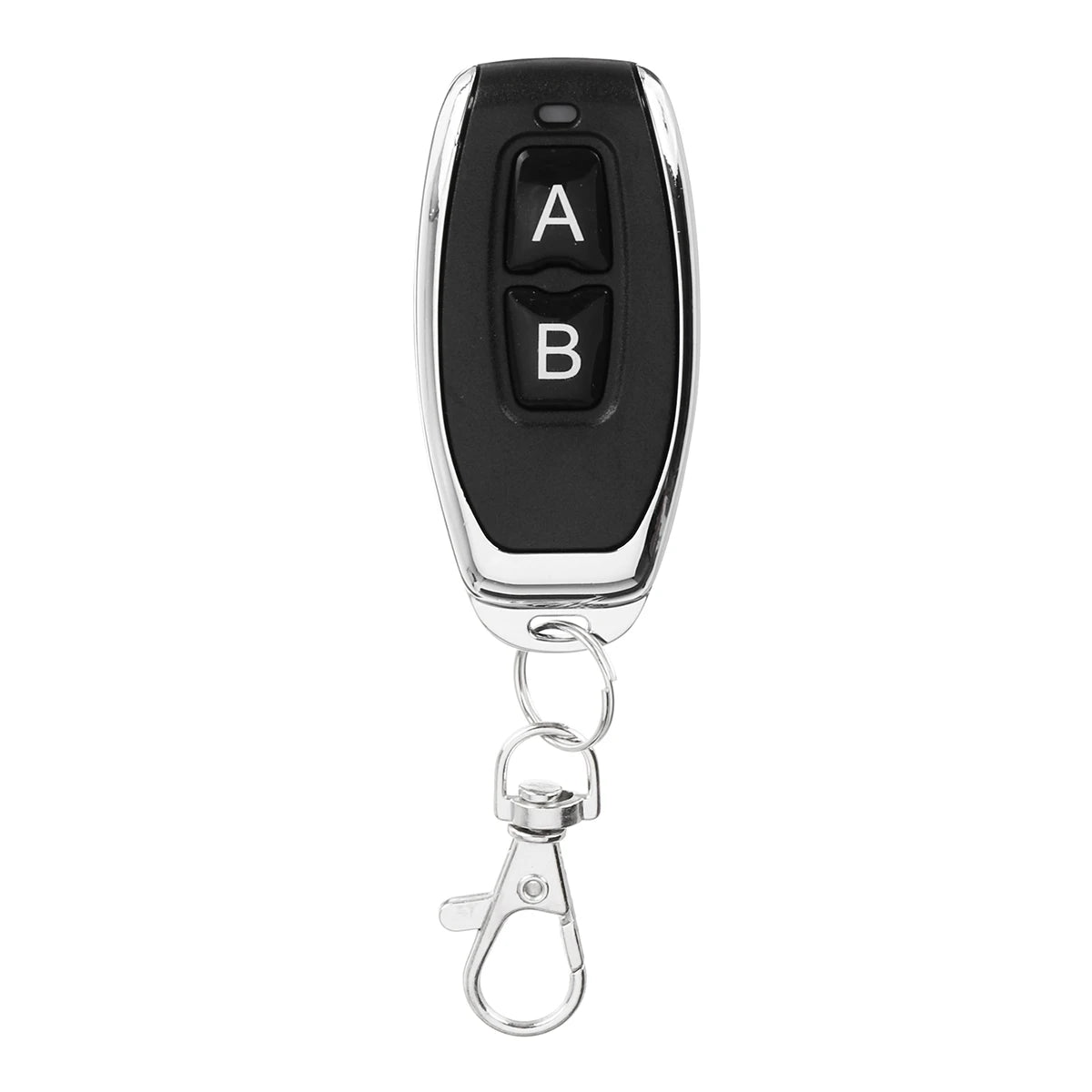

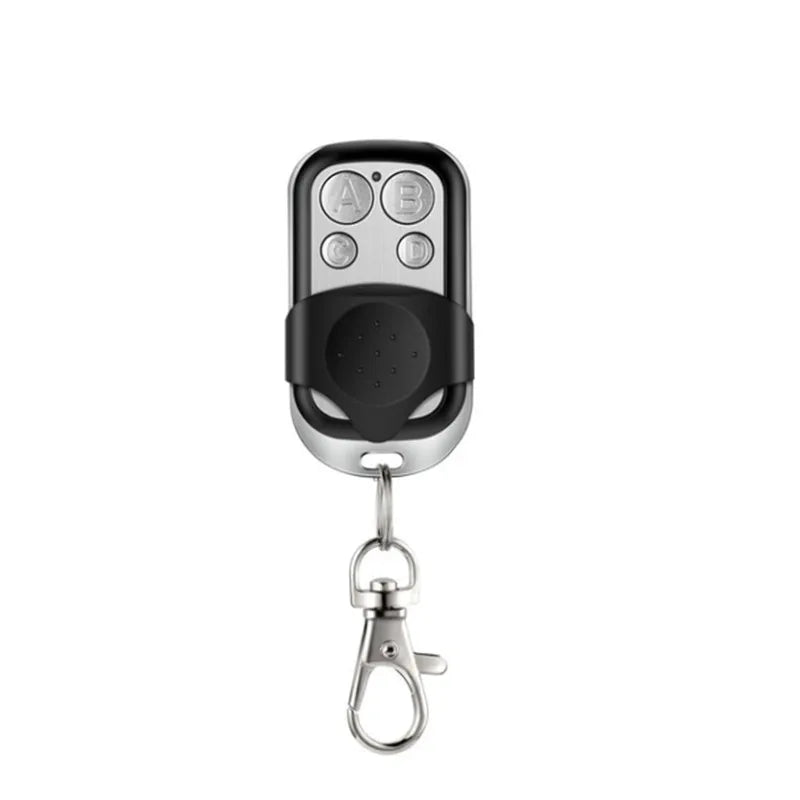

433MHz EV1527 Learning Code Garage Door Remote Control
Only for our Receiver
battery include

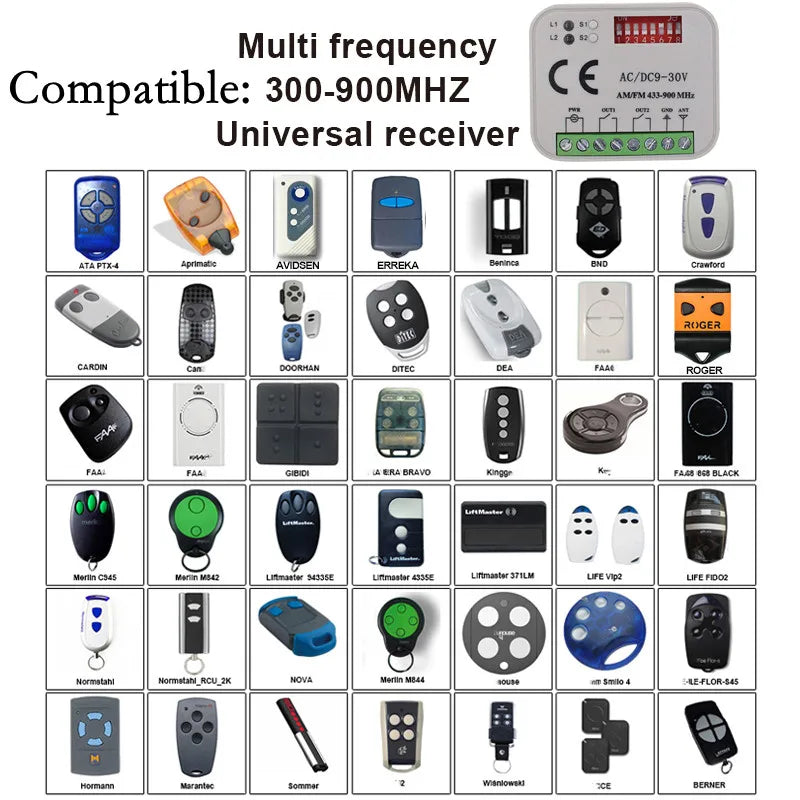

Compatible brands:
All 433.92mhz fixed code remotes.
APRIMATIC,ATA,ADYX,ALLMATIC,AVIDSEN,
BENINCA,CAME,CARDIN,CHAMBERLIN,
Clemsa Mastercode SEAV 433.92mhz,
DOORHAN,DEA,DUCATI,ERREKA 433.92MHZ,
MARANTEC 433.92mhz 868.3mhz,
liftmaster 310, 390, 433.92mhz, 315mhz,
Hormann and Marantec, Berner 868mhz,
Prastel, DITEC 433 and 315mhz, V2,VDS, PNC, FORSA, ALMA, ROPER 868MHZ,SOMMER 868.8MHZ
How to program - It is easy!

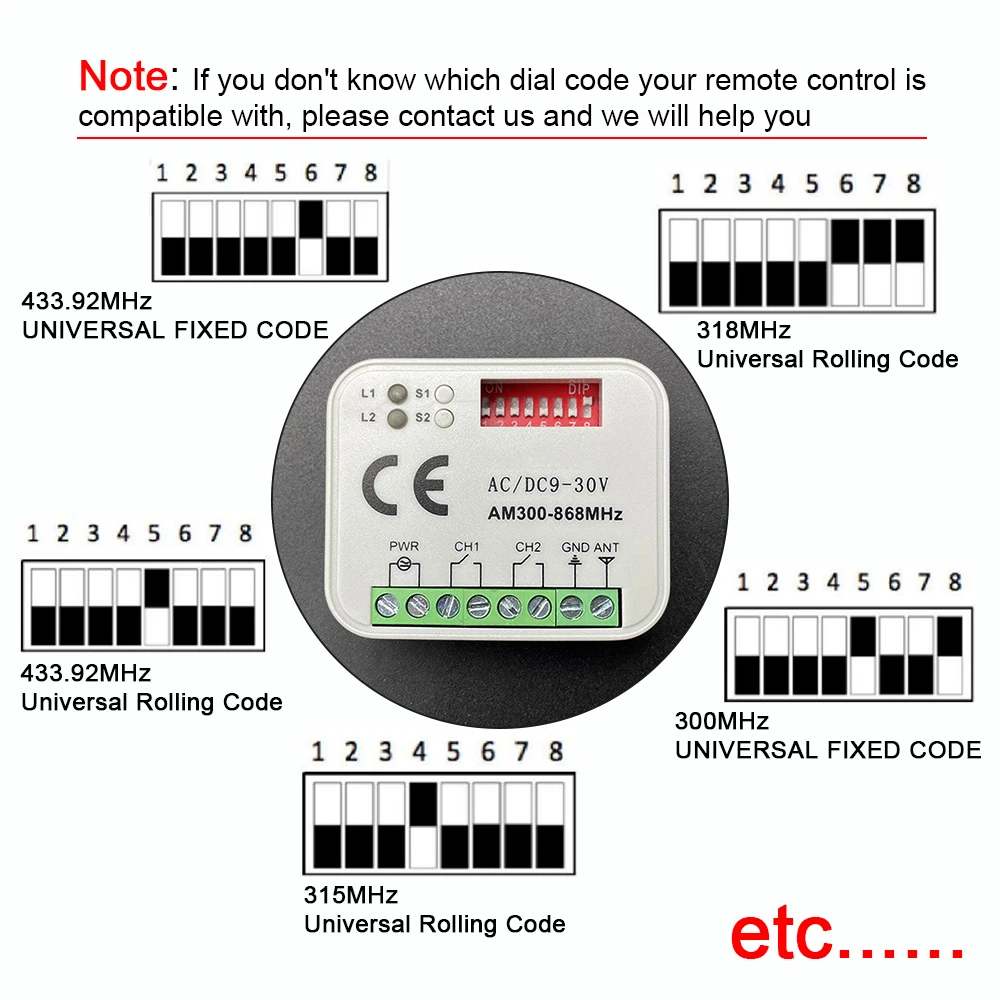

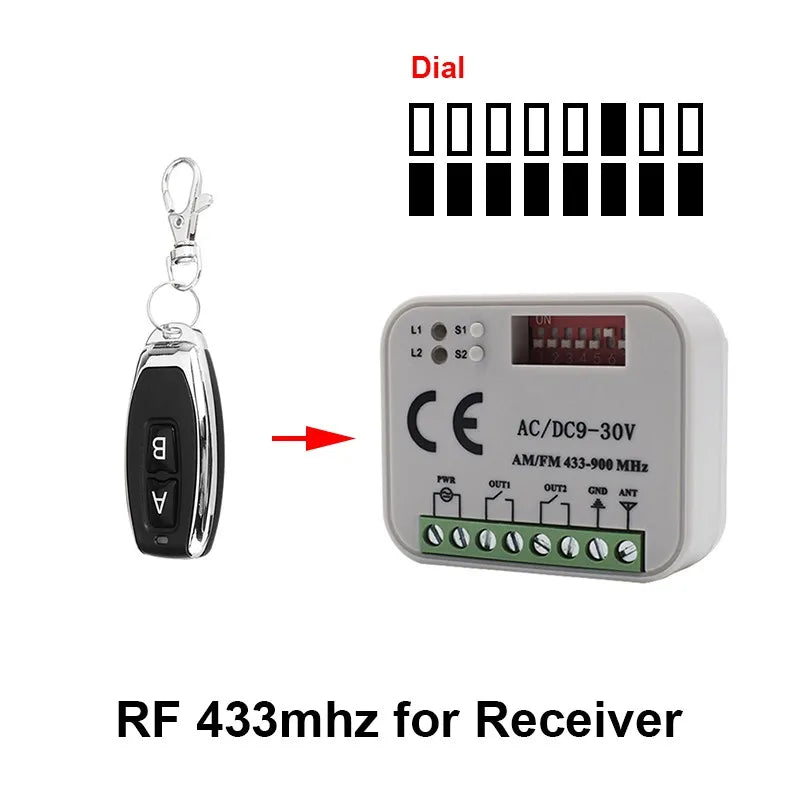

1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP.
2) Press the learn button. The will LED turn on.
3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4) Repeat step 2 for another button.
5)The 2-nd channel programming procedure is the same.
Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered
wide range of uses:
Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system
